ABRV101 RV Slideout Motor Locking Fastener Kit


ABRV101 RV Slideout Motor Locking Fastener Kit

Unsure which kit is right for your RV?

  • If the wrench size is 9/16” – use part #ABRV101
  • If the wrench size is 1/2” – use part #ABRV103
SKU: ABRV101 Category: Tag:


ABRV101 RV Slideout Motor Locking Fastener Kit – 3/8 – 16 x 1″ bolts with a 9/16″ wrench size and 4″ between the bolt holes

Part Number: ABRV101

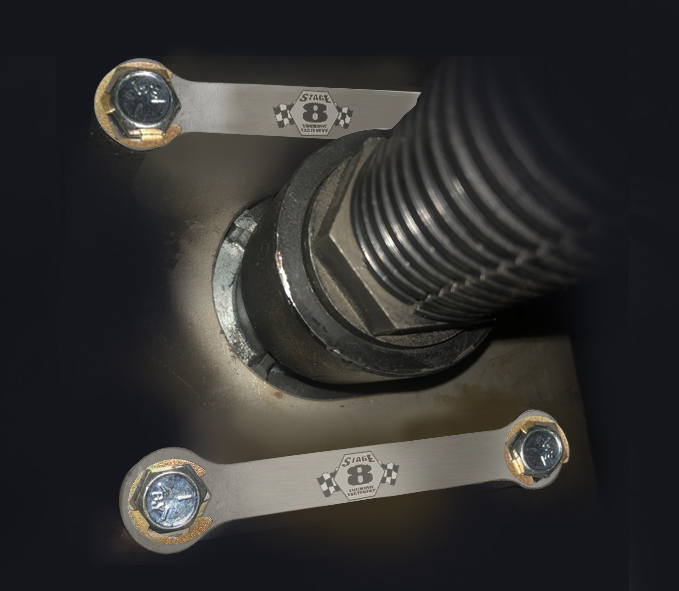

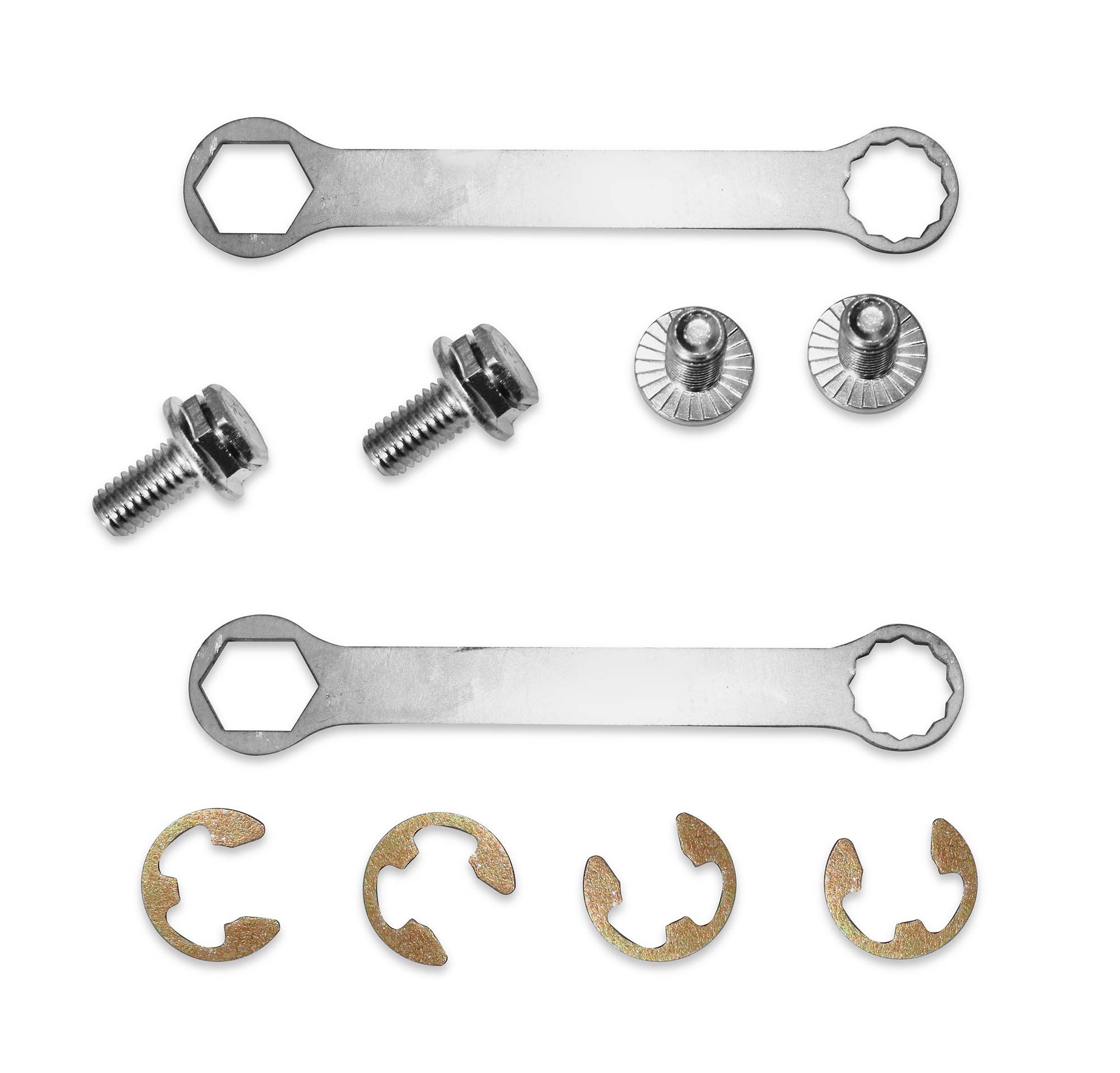

Stage 8, the leader in fail-safe mechanical locking fasteners, has now created a fail-proof solution to a common problem experienced by many RV and Motorhome owners with slideouts on their coach. Stage 8 created this custom solution for the slideout motor in the Dutch Star and Mountain Air 2015 Model 4369 and the Tiffen Allegro Bus; all of which have experienced bolts loosening resulting in damage to the slideout assembly. The Stage 8 Locking Bolt Kit, (Part No. ABRV101), comes with (2) laser-cut 2-hole stainless steel bridge retainers, (4) 3/8 16×1 grooved Stage 8 bolts, and (4) spring steel e-clips to keep the bolts locked tightly.


Protect your investment. Stainless steel locking retainers add strength and snap rings provide superior dependability. Easily removable, Stage 8 locking bolt kits are the world’s standard for performance lockdown technology.

Additional information

Weight .5 oz
Dimensions 4.25 × 3 × 1.5 in
